Audio Video Navigation

Audio Video Navigation (AVN) is an integrated unit consisting audio, visual, and navigation with incorporation of advanced functions such as Bluetooth, Digital Video, Digital Audio.




  • Wi-Fi Miracast Smartphone Link - video, audio streaming


  • Wi-Fi DLNA link phone support media play and control, APP function.


  • USB capable of phone streaming


  • SD card


  • Bluetooth via A2DP play music


  • 3D Graphics Display


  • Capacitive Touch Panel (TFT) with multi-touch







  • GA-NET & CAN Bus Communication


  • Gyro/ GPS Navigation


  • Digital Radio


  • OBD II


  • Android/ WinCE OS


  • Integration of CCU with AVN




Add-On Features

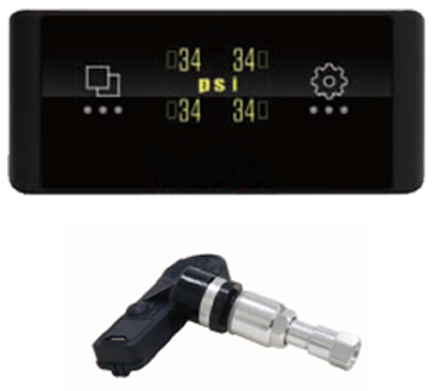

1. Tire Pressure Monitoring System (TPMS)


  • Information of tire pressure & temperature display on AVN head-unit


  • Receiver of TMPS built in-AVN unit


  • Pairing with tires using head-unit control


  • TPMS operates on RF

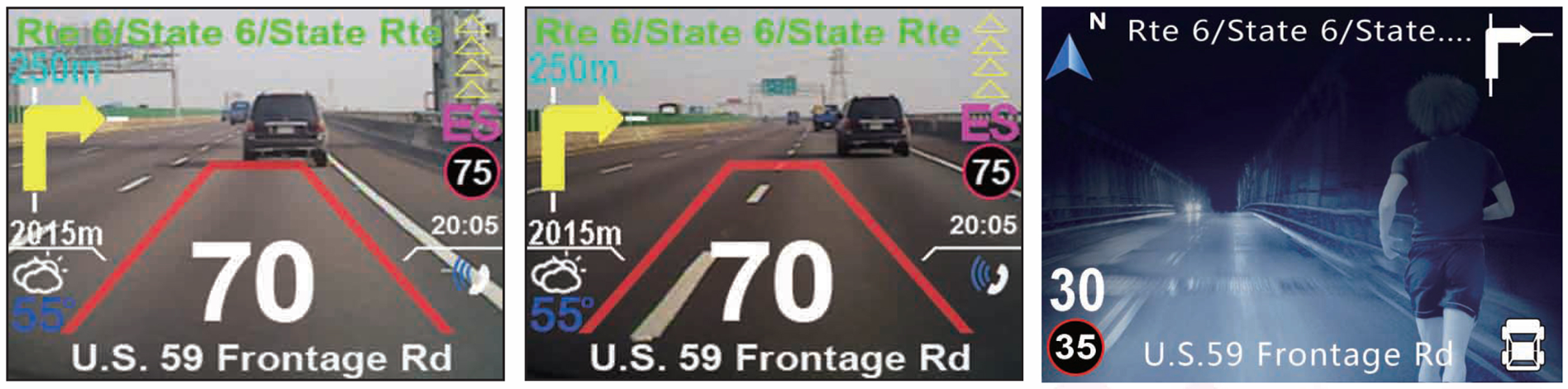

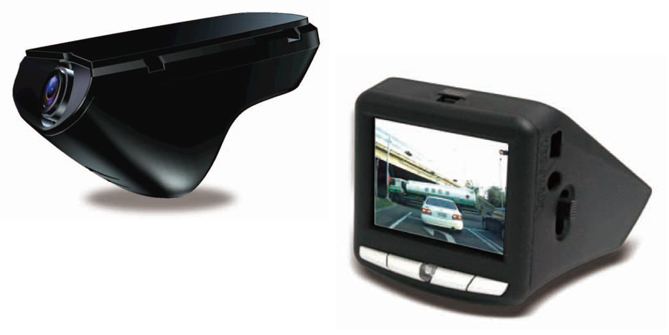

2. Driving Video Recorder (DVR)


  • Front Collision Warning System (FCWS)


  • Lane Departure Warning System (LDWS)


  • Night Vision

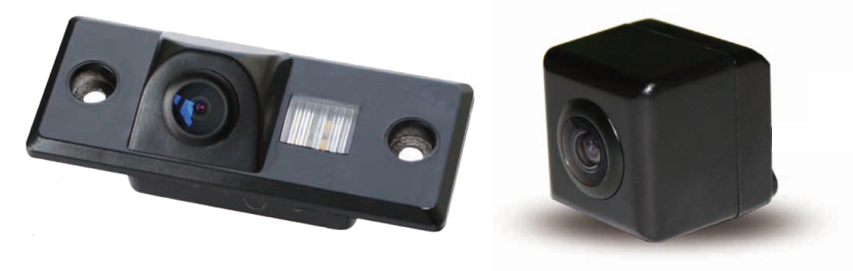

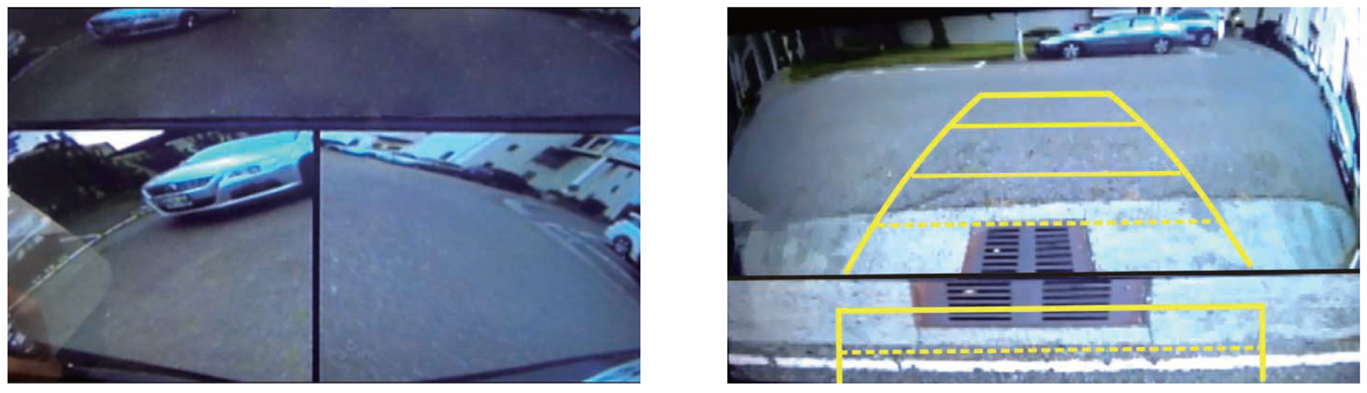

3. Rear View Camera (CCD)


  • Assistance for reverse parking


  • Wire or wireless connection to head unit


  • High definition output with wide view angle
